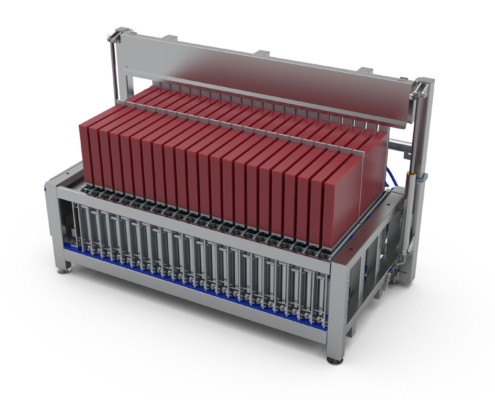

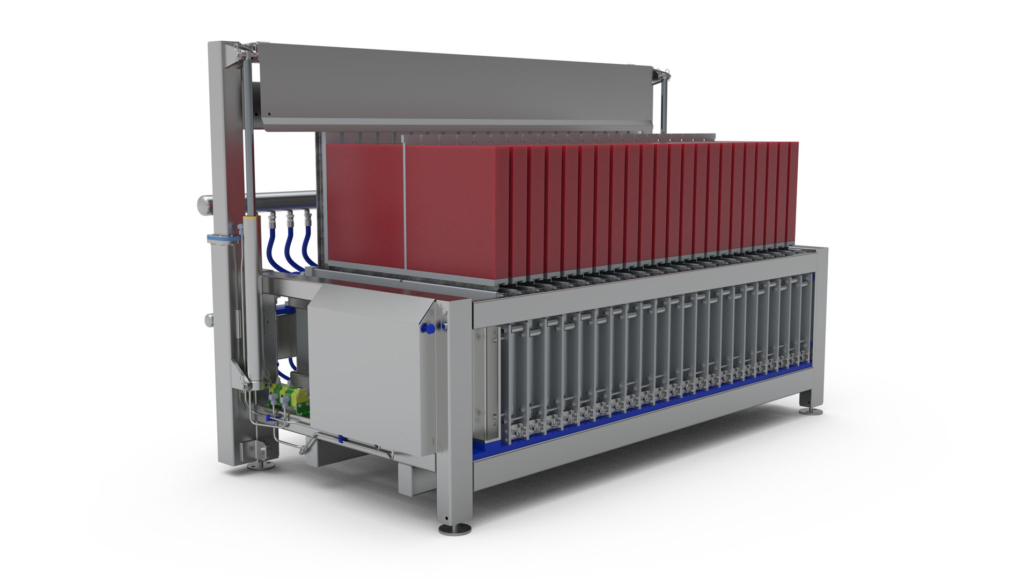

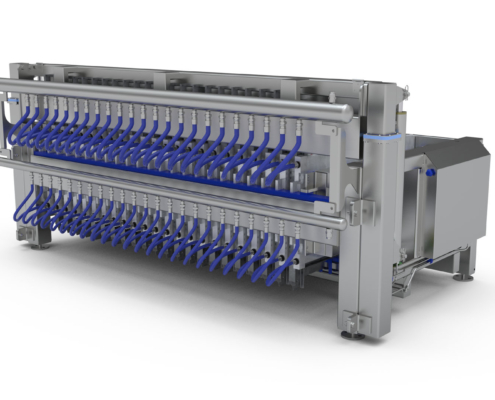

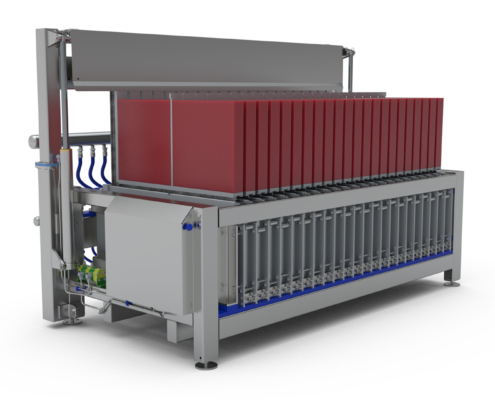

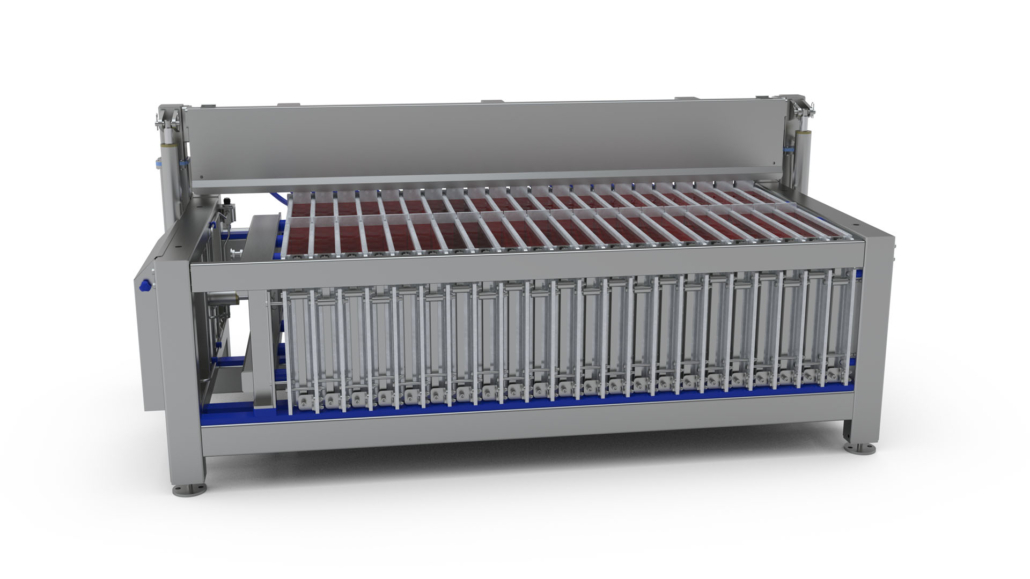

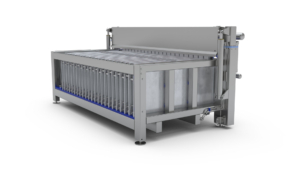

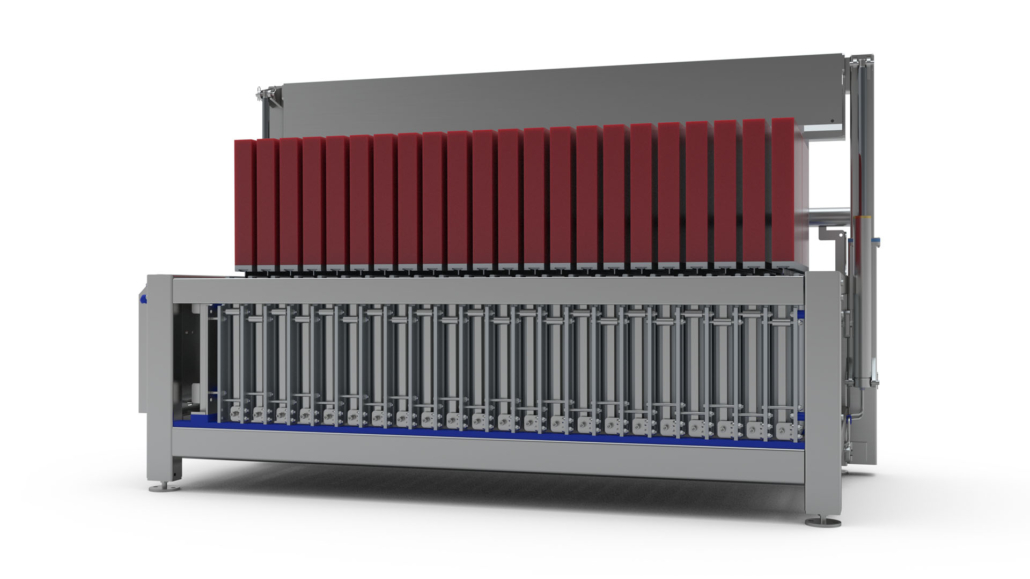

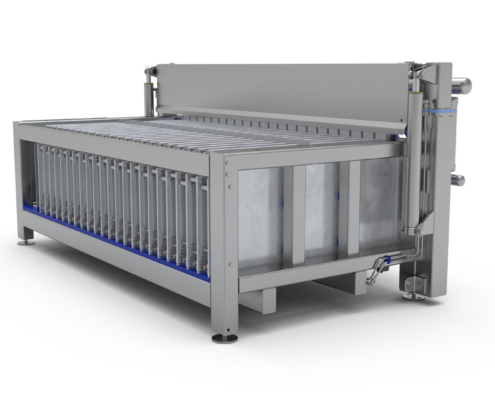

Vertical Plate Freezer
Efficient Commercial Freezing Solutions for High-Volume Operations
Product Overview
The Vertical Plate Freezer is designed to provide rapid and uniform freezing, ideal for businesses that require high throughput freezing solutions. From seafood to meat processing, this freezer ensures maximum preservation of product quality while optimizing energy use.
- Fast & Efficient Freezing: Featuring advanced cooling technology, the vertical plate freezer ensures your products freeze faster, reducing time to market and improving production efficiency.
- Space-Saving Design: The vertical orientation allows for a compact footprint without sacrificing capacity, making it perfect for facilities where space is at a premium.
- Durable & Reliable: Built with high-quality materials, this freezer is designed to withstand the demands of continuous industrial use, ensuring long-term reliability.
Key Features
- Quick Freezing: Achieves faster freeze times, reducing production cycles.
- Energy Efficiency: Optimized to minimize energy consumption without compromising performance.
- Easy Loading & Unloading: The ergonomic design ensures smooth operation, reducing labor costs and operational time.
- Customizable Configurations: Available in various sizes and specifications to meet the specific needs of your business.
- User-Friendly Operation: Includes intuitive controls and easy access points for seamless loading and unloading.
Applications
- Seafood
- Meat & Human Food
- Petfood Processing
- Liquid Freezing
Technical Specifications
- Freezing Capacity: Customizable to meet your production requirements, available in multiple capacities.
- Temperature Range: as low as -50°C, ensuring rapid and even freezing across all product types.
- Plate Dimensions: Available in various sizes to accommodate different product loads.
Weight per Batch
| Block Size | Block Weight | Number of Stations | |||||
| 26 | 30 | 34 | 38 | 42 | 46 | ||
| 1060 x 530 x 76 | 38 kg | 988 kg | 1140 kg | 1292 kg | 1444 kg | 1596 kg | 1748 kg |
| 1060 x 530 x 102 | 51 kg | 1326 kg | 1530 kg | 1734 kg | 1938 kg | ||
| 810 x 600 x 76 | 33 kg | 855 kg | 987 kg | 1119 kg | 1250 kg | 1382 kg | 1513 kg |
| 810 x 600 x 102 | 44 kg | 1147 kg | 1323 kg | 1499 kg | 1676 kg | ||
| 1210 x 500 x 76 | 41 kg | 1063 kg | 1227 kg | 1391 kg | 1554 kg | 1718 kg | 1881 kg |
| 1210 x 500 x 102 | 55 kg | 1427 kg | 1647 kg | 1867 kg | 2086 kg | ||
Power Consumption: Optimized for energy-saving operations, minimizing long-term costs.

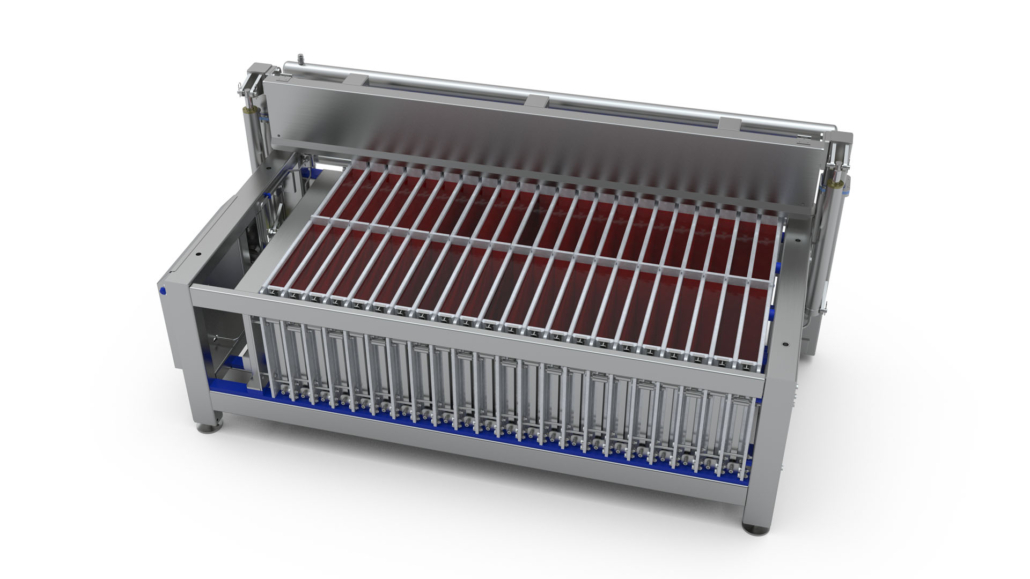

360° Spin View
Options Available

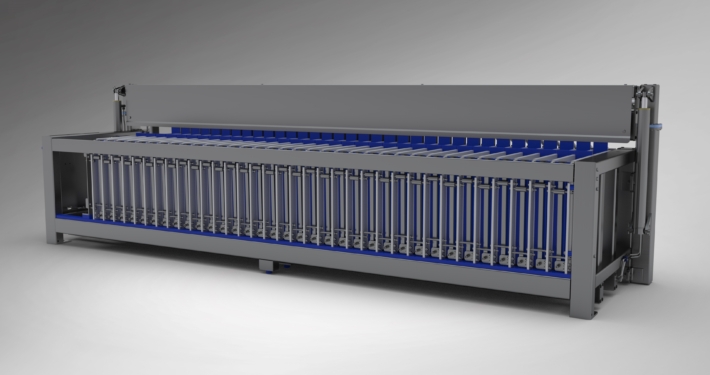

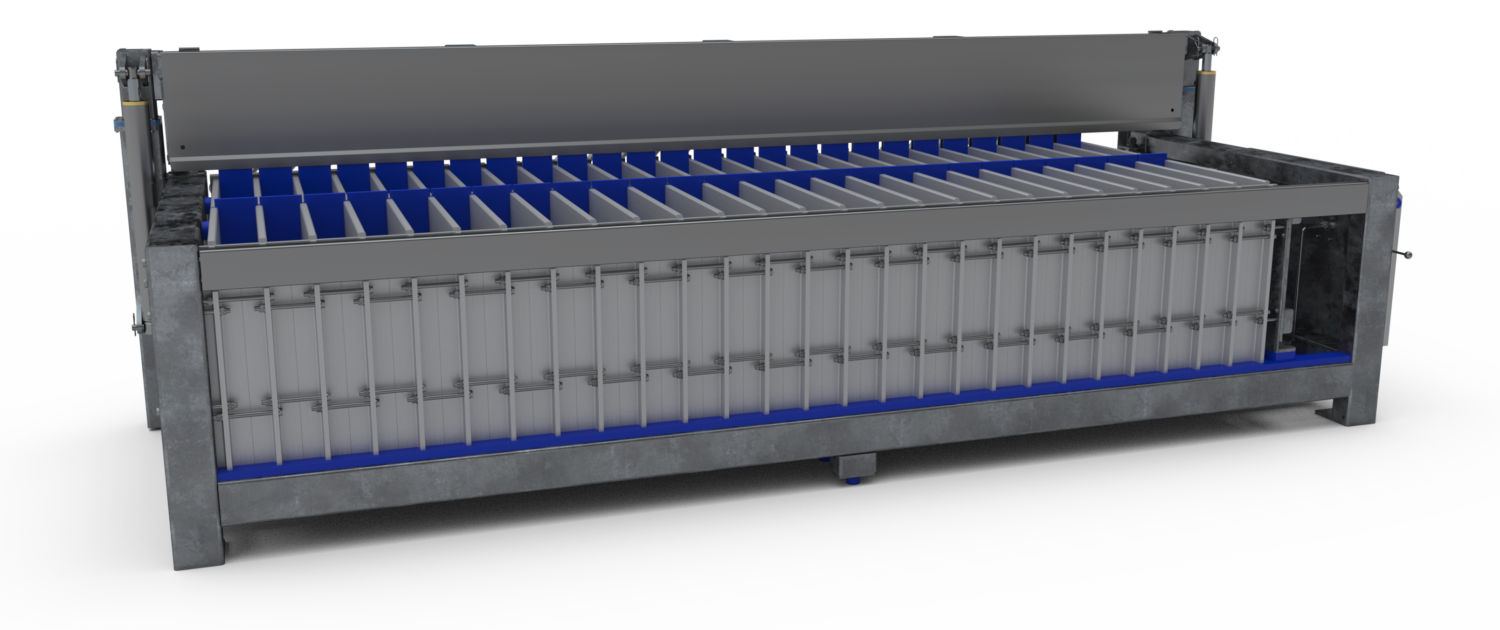

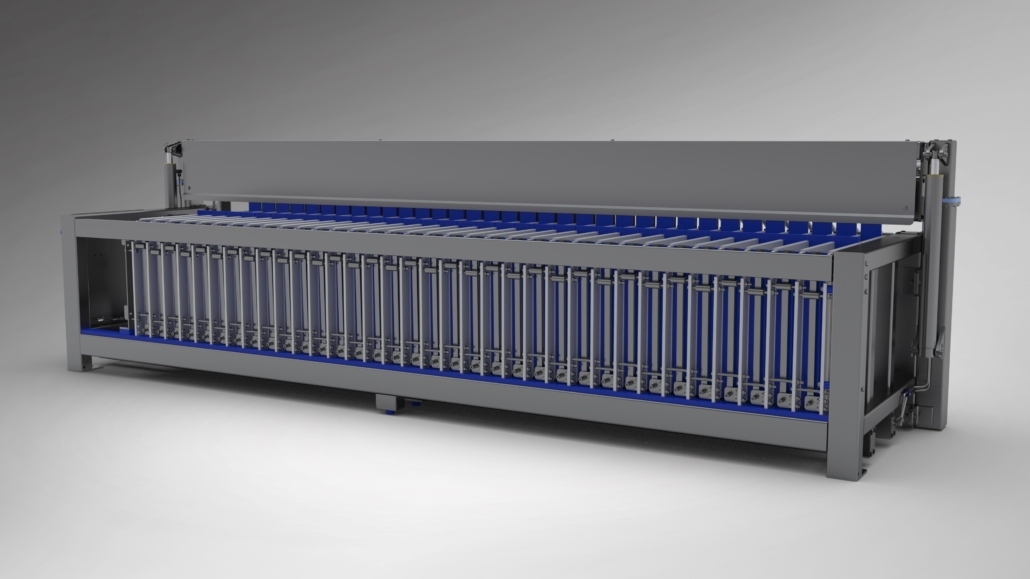

Stainless Steel Framework
The Stainless Steel Vertical Plate Freezer option has been designed with hygiene in mind, eliminating product contact with the galvanized steel framework. The frame is 304L grade Stainless Steel box section allowing easy cleaning. All fixings and fittings are Stainless Steel as standard so daily washing and cleaning is not an issue.

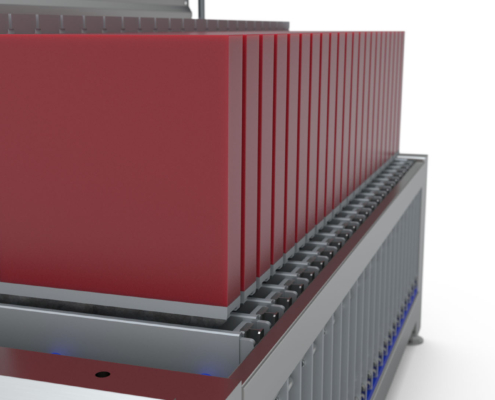

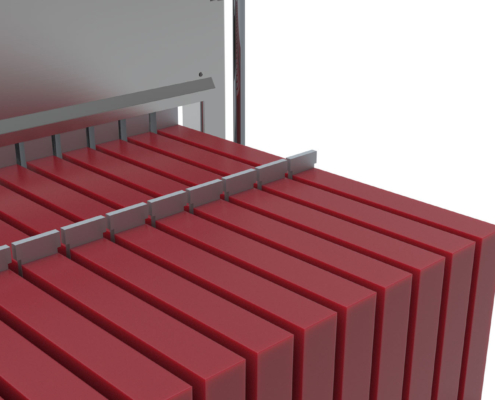

Adjustable Front Spacer

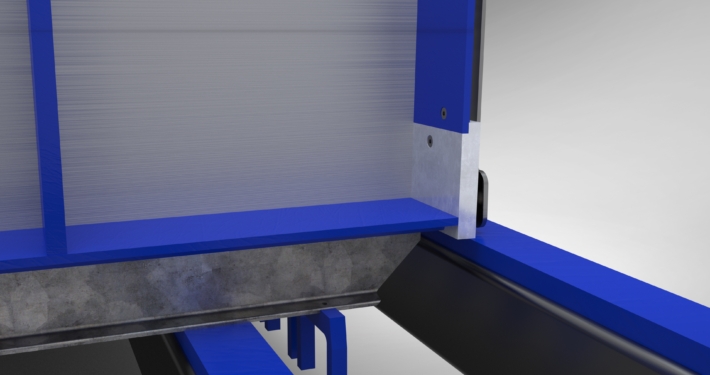

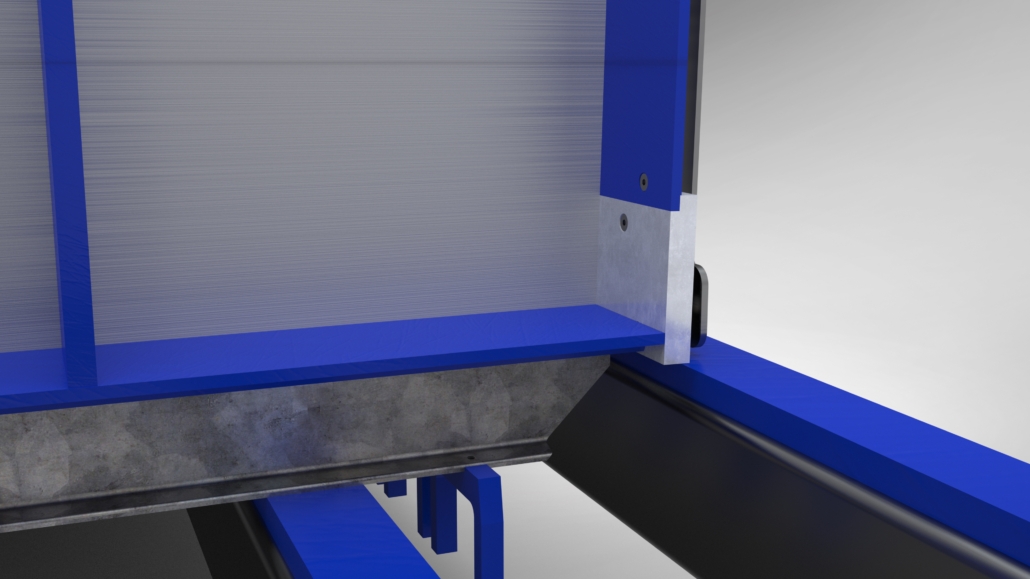

The adjustable front spacer option (shown here with a lower drip loss option) features a front spacer between the freezing plates which can be adjusted tight to the lifting arm plastic and help form a tighter fit. Any wear over the years can be accounted for by readjusting the spacers.
The lower drip loss option features an Aluminium bottom part which can form a “frozen seal” for less viscous products.

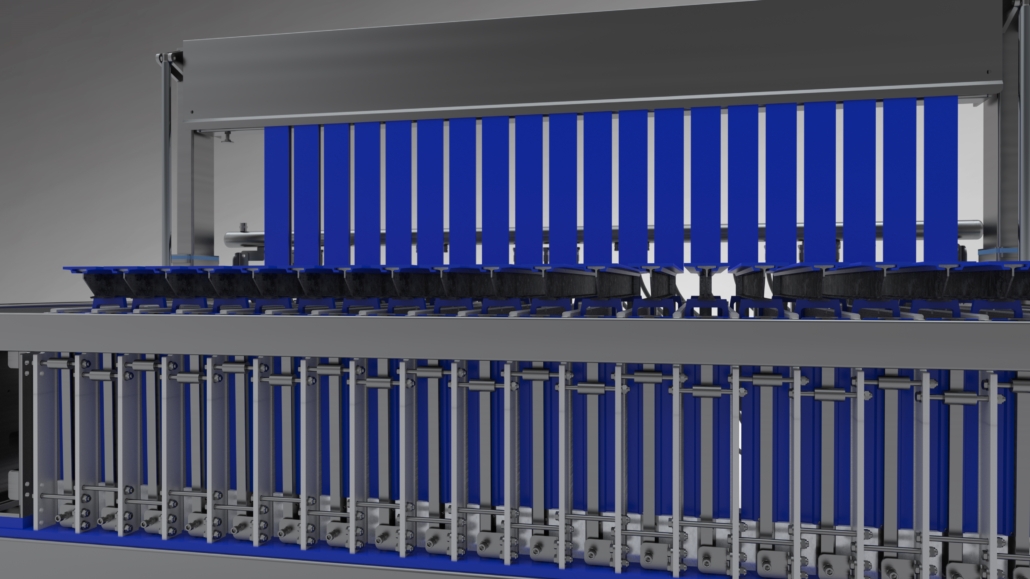

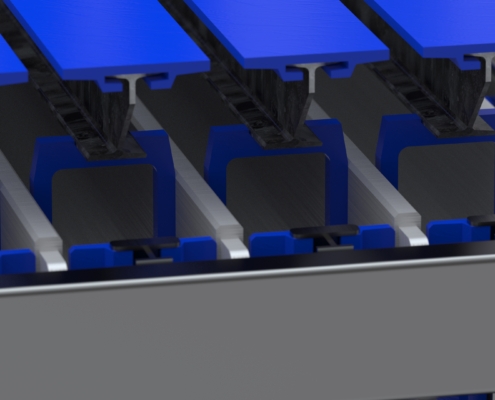

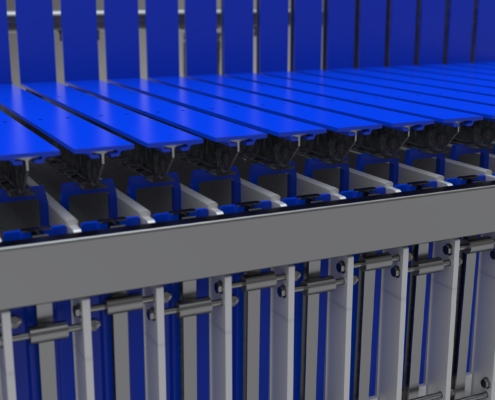

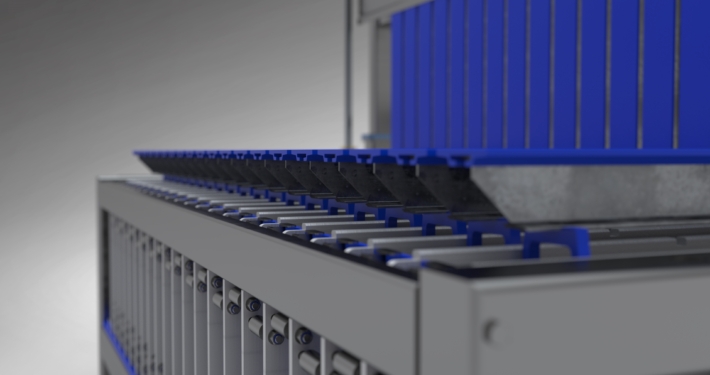

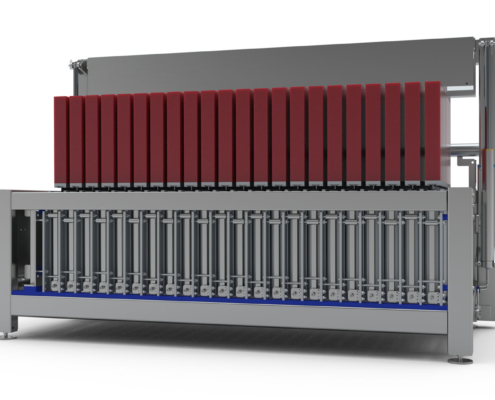

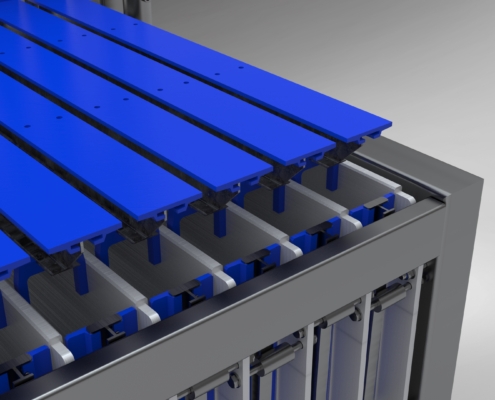

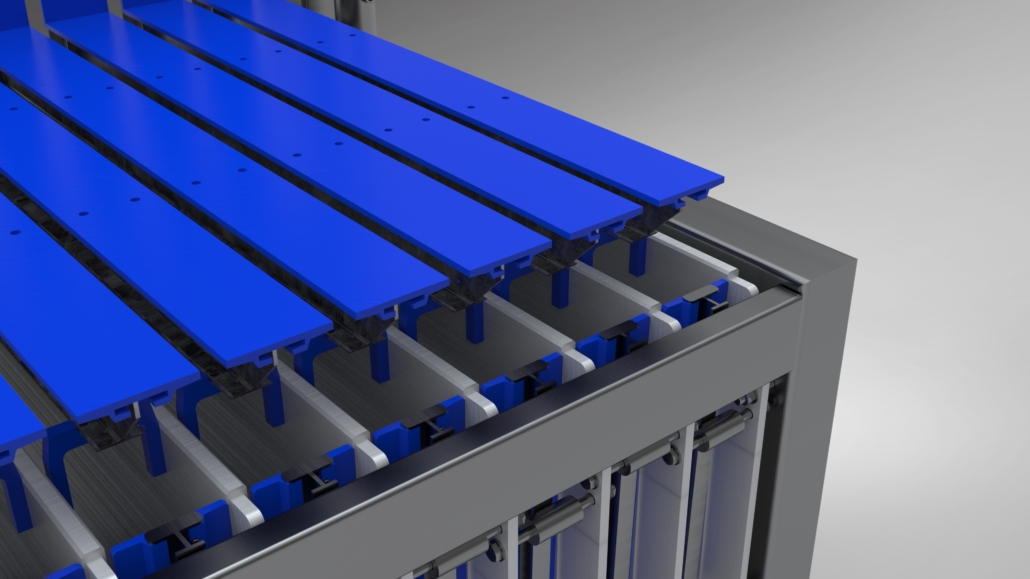

Extended Cleaning Lift
The extended cleaning lift option allows the lifting arms to rise fully out of the plates in order to facilitate easier cleaning underneath the arms. The bottom of the arms is above the plate for full easy access, whilst plastic guides stop the arms from coming out of their individual pockets.
Plate / Defrost Sensor
The plate / defrost temperature sensor records the plate temperature. It’s main use is to prevent over and under defrosting. A common application is the “lock out” the hydraulics electrically until the sensor reads approx 5°C during defrosting and then allows the freezer to be unloaded.
All temperature sensor options us Thermocouple sensors and come with a 4-20mA signal conditioner for easy wiring.
Product Temperature Sensor
The product temperature option allows for recording and checking product temperatures. Since the top of the block is the last part to freeze, it is designed so you can easily place it in the top of the food you’re freezing.
VTL – Vertical Liquid Freezing Model
